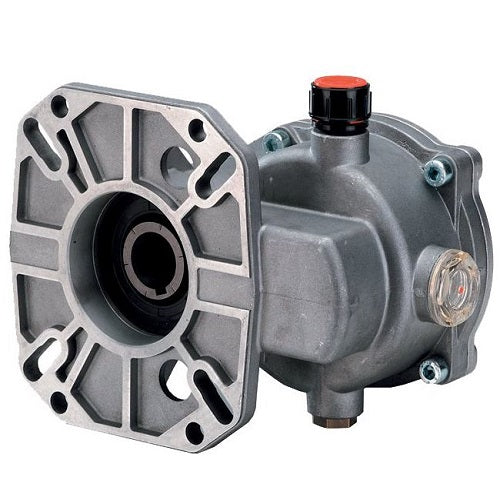

PA B24 Gearbox for Engines - 1" Shaft

• For SAE J609b flange engine
• For IP 47-59-66-MF2 series pumps
• 1", 25.4mm hollow shaft
• 24 Hp, 17.7 kW max power
• Input speed 3100 rpm
• Output speed 1450 rpm
• 2.176:1 reduction
• See Tech Documents for other pump compatibilty

Choosing the right option

Check the engine shaft, pump shaft, mounting and reduction ratio against the existing drive assembly.
