Product Code | Capacity | Orientation | Lid | Outlet |
---|---|---|---|---|
T24WBK4I | 24 | 4 | ½" BSP |
Description

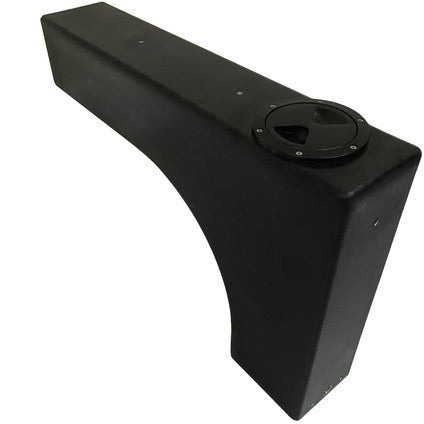

24 Litre wheel arch water tank designed to fit in vans, pick-ups, campers, campervans or motorhomes.
24 litre capacity has 6 x M8 inserts moulded into the tank for easy mounting. There are also a range of kits available to ensure the tank is quick and easy to install including a plumbing kit, fitting kit and a submersible pump kit options below - these need to be purchased seperatly.
Submersible Pump Kit:
This kit can be used to allow a submersible pump to be connected through the lid.
Contents:
1 x ½” BSP 90° bulkhead hose tail 11-13mm
1 x ½” BSP back nut
1 x ½” BSP gasket
1 x cable gland
1 x 10 metre roll PTFE tape
Plumbing Kit:
This kit has all the fittings required for the outlet, inlet and vent hoses.
Contents:
1 x ½” BSP x 13mm hose tail
2 x ½” BSP 90° hose tail
3 x ½” BSP gasket
3 x ½” BSP back nut
1 x 10 metre roll PTFE tape
24 Litre Fitting Kit:
3 x M8 x 12mm socket button head stainless steel
3 x M8 x 25mm washer stainless steel
1 x 50mm x 55mm x 30mm angle bracket
2 x 150mm x 90mm x 60mm angle bracket
Specifications:
Product Code | Capacity | Orientation | Lid | Outlet |
---|---|---|---|---|
T24WBK4I | 24 | 4 | ½" BSP |
Description
24 Litre wheel arch water tank designed to fit in vans, pick-ups, campers, campervans or motorhomes.
24 litre capacity has 6 x M8 inserts moulded into the tank for easy mounting. There are also a range of kits available to ensure the tank is quick and easy to install including a plumbing kit, fitting kit and a submersible pump kit options below - these need to be purchased seperatly.
Submersible Pump Kit:
This kit can be used to allow a submersible pump to be connected through the lid.
Contents:
1 x ½” BSP 90° bulkhead hose tail 11-13mm
1 x ½” BSP back nut
1 x ½” BSP gasket
1 x cable gland
1 x 10 metre roll PTFE tape
Plumbing Kit:
This kit has all the fittings required for the outlet, inlet and vent hoses.
Contents:
1 x ½” BSP x 13mm hose tail
2 x ½” BSP 90° hose tail
3 x ½” BSP gasket
3 x ½” BSP back nut
1 x 10 metre roll PTFE tape
24 Litre Fitting Kit:
3 x M8 x 12mm socket button head stainless steel
3 x M8 x 25mm washer stainless steel
1 x 50mm x 55mm x 30mm angle bracket
2 x 150mm x 90mm x 60mm angle bracket
Specifications:
Nominal capacity (Ltr) 24 Height (mm) - Excluding Lid 500 Width (mm) 750 Depth (mm) 150 Weight (kg) 3 Baffled NoWhilst every effort is made to ensure accuracy, all dimensions and volumes quoted are subject to a +/- 3% variation due to the manufacturing process. Please call for more information if required.
